Unleash Next-Gen Connectivity with TP-Link Omada EAP772 V1
The TP-Link Omada EAP772 V1 is a high-performance Wi-Fi 7 access point, offering blazing speeds up to 11 Gbps across three bands (2.4 GHz, 5 GHz, 6 GHz). Designed for modern businesses and high-density environments, it supports 380+ devices, advanced WPA3 security, and cloud management for seamless operation. With flexible PoE-powered wall/ceiling mounting, it ensures effortless integration into professional or educational setups.

Product Overview

The TP-Link Omada EAP772 V1 sets a new benchmark for wireless networking, blending cutting-edge Wi-Fi 7 technology with a robust, secure, and scalable solution tailored for diverse applications. Engineered for performance, it supports over 380 devices simultaneously, making it ideal for offices, schools, and public venues. The integration of cloud management and advanced features like seamless roaming, Omada Mesh, and MU-MIMO ensures a reliable and user-friendly experience.

Whether you're expanding a corporate network or enhancing coverage in a high-traffic environment, the EAP772 V1 combines speed, reliability, and security in a versatile package.

Key Features

• Ultra-Fast Connectivity: Wi-Fi 7 with up to 11 Gbps across 2.4 GHz, 5 GHz, and 6 GHz bands.
• High Device Capacity: Supports over 380 concurrent devices and up to 24 SSIDs.
• Advanced Security: Features WPA3 encryption and RADIUS authentication for robust protection.
• Cloud Management: Monitor and control your network from anywhere with the Omada Cloud.
• Seamless Roaming: Effortlessly transition between access points without connection drops.
• Flexible Deployment: PoE-powered with wall/ceiling mount options for any setting.

Technical Specifications
General

• Device Type: Radio access point
• Wi-Fi Standard: Wi-Fi 7 (IEEE 802.11be)
• Bands: 2.4 GHz (574 Mbps), 5 GHz (2880 Mbps), 6 GHz (5760 Mbps)
• Maximum Data Rate: 11 Gbps

Security

• WPA3-Personal and Enterprise encryption
• RADIUS and SSID authentication methods

Networking

• Interfaces: 1 x 2.5GbE PoE (RJ-45)
• Management: Cloud-based via Omada Controller
• Protocols: SNMP, Static IP Routing

Advanced Features

• Airtime Fairness, MU-MIMO, Beamforming, BSS Coloring
• Omada Mesh Technology, Captive Portal, and Guest Network support
• Dynamic IP mode, load balancing, and VLAN support

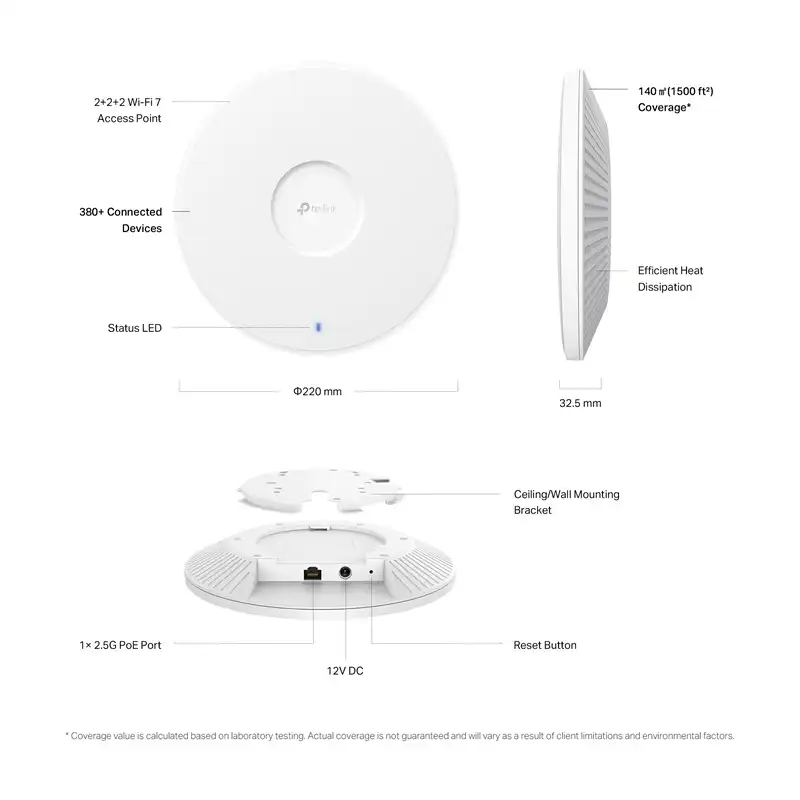

Physical Design

• Dimensions: 22 cm x 22 cm x 3.25 cm
• Mounting: Wall/ceiling (kit included)
• Power: PoE-compatible (external adapter not included)

Environmental

• Operating Temperature: 0–40 °C
• Humidity: 10–90% (non-condensing)

Recommended Environments

1. Corporate Offices: Provide secure, high-speed Wi-Fi for large teams and multiple devices.
2. Educational Institutions: Seamless connectivity for classrooms, staff areas, and public zones.
3. Public Spaces: Manage high-density traffic in cafes, libraries, and event venues with ease.
4. Retail and Hospitality: Deliver a reliable guest network and support for POS systems.

Upgrade your wireless network with the TP-Link Omada EAP772 V1. Combining next-gen technology with unparalleled flexibility, it’s the ideal solution for modern connectivity demands.
